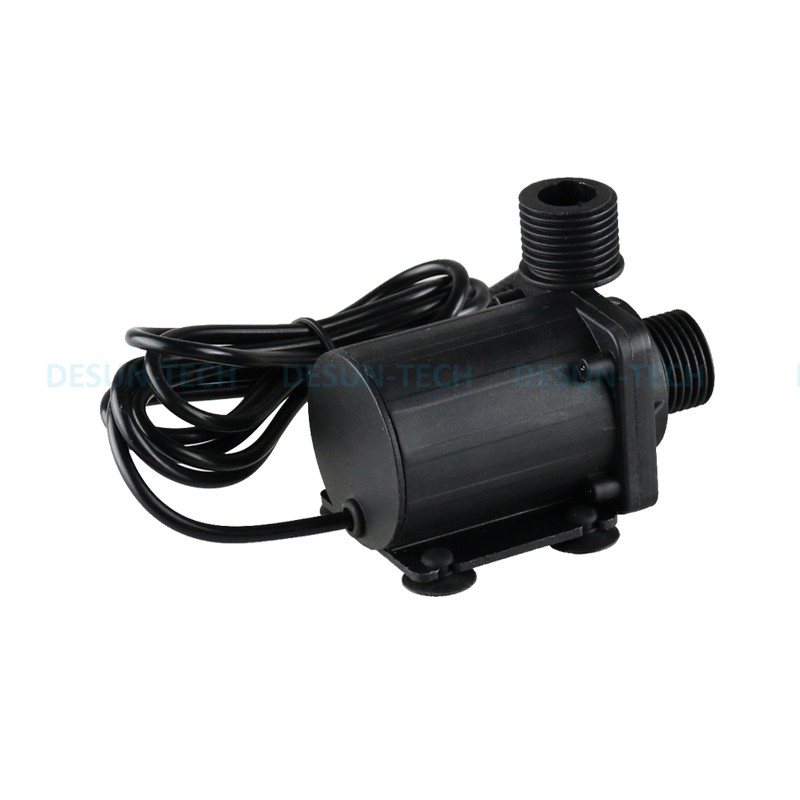

24v Micro Hot Water Circulating Brushless DC Submersible Pump
Customized support:OEM, ODM
Brand Name:Desun
Place of Origin:Guangdong, China
Application:Other, Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Home appliance,water circulation system,etc.
Horsepower:Max. 28.8w
Power Source:Electric
Pressure:Max.11m
Structure:Multistage Pump
Outlet Size:20mm
Voltage:12V/24V
Power:30W
Product name:Water pump
Lifetime:Over 30000 hours
Noise:≤35dB
Workig temp.:≤100℃
Duty work:Work a whole day continously
Charateristic:Light weight,no spark,etc.
Liquid:Hot Water Circulating
Fuel:Solar panel, DC electric source, Battery.
Certification:RoHS,ce
DS-800F SUBMERSIBLE WATER PUMP
Features 1. Life: Expected life span is about 30000 hours. 2. Low noise: ≤40dB, far from 1meter distance. 3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation. 4. Working conditions: Applying to indoor and outdoor under temperature 40 deg C. 5. Working temperature: Within 100degC. can work in water and out of water. 7. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection; run-dry protection, over current protection, idling protection, blocking protection, jammed protection signal feedback, speed control, etc. Power supply It can be powered directly by a Solar panel; DC electric source; battery. Application 1.Water circulation. 2. Small pood. 3. Fountain, aquarium, home appliances, etc...
Related Parameters (The technical specification only for reference, it can be customized)
Model | Voltage(V) | Rated Current(A) | Max flow(L/H) | Max water head(M) | Power(W) |
DS-800F | 12 | 1.2 | 480 | 6 | 14.4 |
DS-800F | 24 | 1.2 | 650 | 8 | 28.8 |
DS-800F-3 | 12 | 1.2 | 500 | 6.5 | 14.4 |
DS-800F-3 | 24 | 1.2 | 800 | 11 | 28.8 |
Attention
The current above is open outlet current, when contact to circulation system the current will cut down to 55%~70% of Rated current.
DS-800F-3 &DS-800F-3 Including the water shortage protection,over-current protection,over-voltage protection,blocking protection,etc.
We supply Full Customization Service, please contact us for the details.
