dc 9v 12v Mini DC12v Motor Water Pump For Automated Tea Brewing Machine
Customized support: OEM, ODM
Brand Name: Desun
Model Number: DSSP370-XC
Place of Origin: Guangdong, China
Application: Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Raw Water Intake, Washing and Cleaning, wastewater treatment, Other
Power Source: Electric
Pressure: Low Pressure
Structure: Diaphragm Pump
Outlet Size: 6.5mm
Voltage: 3V/6V/9V/12V/24V
Power: 3.6W
Product name: Water pump
Lifetime: >= 500 Hours
Noise: ≤65dB (30cm away)
Duty work: Work a whole day continously
Charateristic: Light weight,no spark,etc.
Air flow: 0.3- 1.2 LPM
Maximum Pressure: >= 30 Psi
Rated voltage: 3V 6V 9V 12V 24V
Certification: CE,RoHS

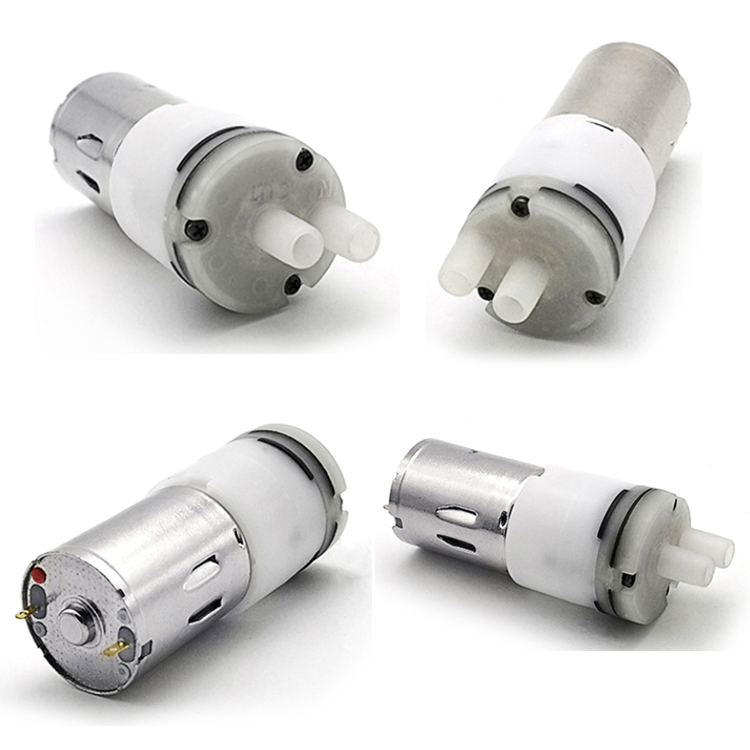

DSSP370-XC MINI WATER PUMP
Features
1. Life: Expected life span is over 500 Hours.
2. One Year warranty.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
5. Working temperature: 5~45°C .
7. One week for samples, two week for bulk order.
8. Factory price + high quality + good after-sales service
Related Parameters (The technical specification only for reference, it can be customized)
Voltage(V) | Power | Rated Current | Pump Head | Water flow | Maximum Pressure |
DC 3V | 3.6 W | ≤ 1200mA | ≥ 5m | 0.3 - 1.2 LPM | ≥200KPa |
DC 6V | 3.6 W | ≤ 600mA | ≥ 5m | 0.3 - 1.2 LPM | ≥200KPa |
DC 9V | 3.6 W | ≤ 400mA | ≥ 5m | 0.3 - 1.2 LPM | ≥200KPa |
DC 12V | 3.6 W | ≤ 300mA | ≥ 5m | 0.3 - 1.2 LPM | ≥200KPa |
DC 24V | 3.6 W | ≤ 150mA | ≥ 5m | 0.3 - 1.2 LPM | ≥200KPa |
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots, vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY, etc.
We supply Full Customization Service, please contact us for the details.
