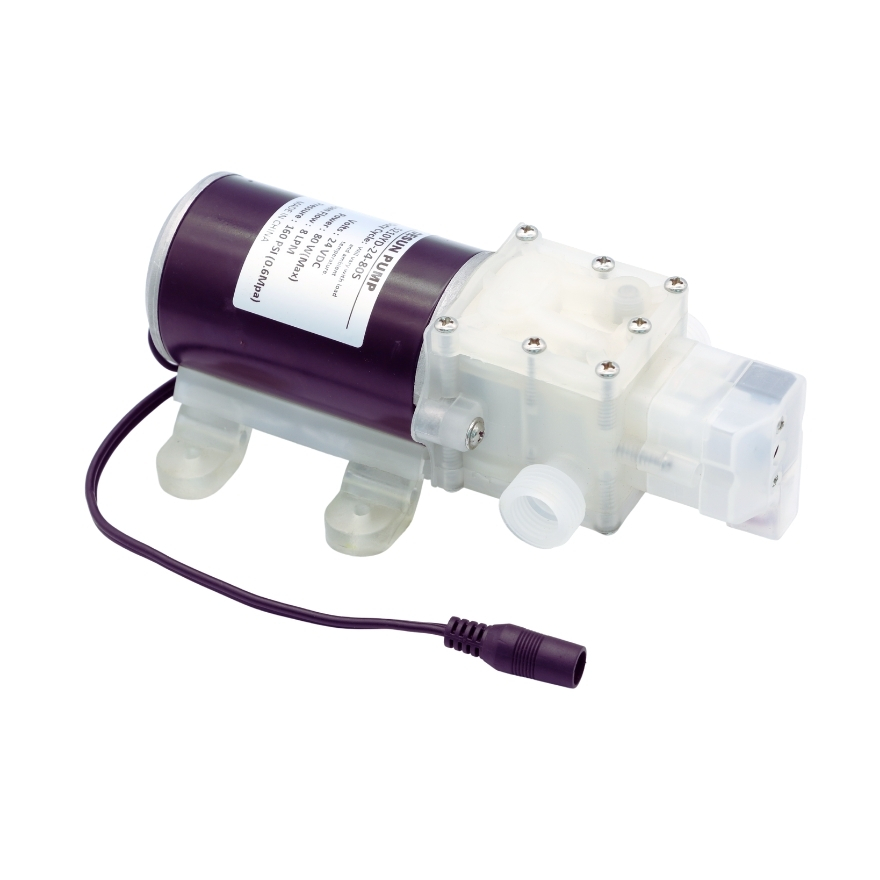

5210YD-12-80S/5210YD-24-80S FOOD GRADE PUMP

MODEL EXPLANATION

Take "5210HD-12-100" as an example, 5210 represents the motor model, H represents the pump's head type, D represents the interface type, 12 represents the voltage, and 100 represents the power.

This model is made of food grade material, mainly used for Food and Beverage industry.

PUMP'S HEAD TYPE EXPLANATION

TYPE Y INTELLIGENT PUMP HEAD

Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor； The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.

Application scope:

Car washer, solar energy automatic water, water system automatic control or other fluid automatic control auxiliary equipment, etc...

TYPE H REFLUX PUMP HEAD

Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability. Application scope:

High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.

INTERFACE TYPE EXPLANATION

The pump's head type and the interface can be freely replaced, please contact us for the details.

RELATED MODELS TECHNICAL PARAMETERS

* The technical parameters above are only a few for your reference. * All models can be equipped with adapters. * All models can be powered by solar power, DC power, solar panels, batteries, etc.

* You can tell us what you use the pump for or the parameters required, then we'll recommend you suitable pumps.

ATTENTION

* Do not use water or dirty water whose temperature exceeds 60℃ (silt in dirty water will cause irreversible damage to the pump). * Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after use. * Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time. * Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump). * It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump). * The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged. * Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters
